Cooling the Cooler: Does Shading Your Condenser Really Work?

Does Shade on Outdoor Unit Improve Efficiency? Here's the Quick Answer

Does shade on outdoor unit improve efficiency — and if so, by how much? The short answer: yes, but only a little.

Here's what the research actually shows:

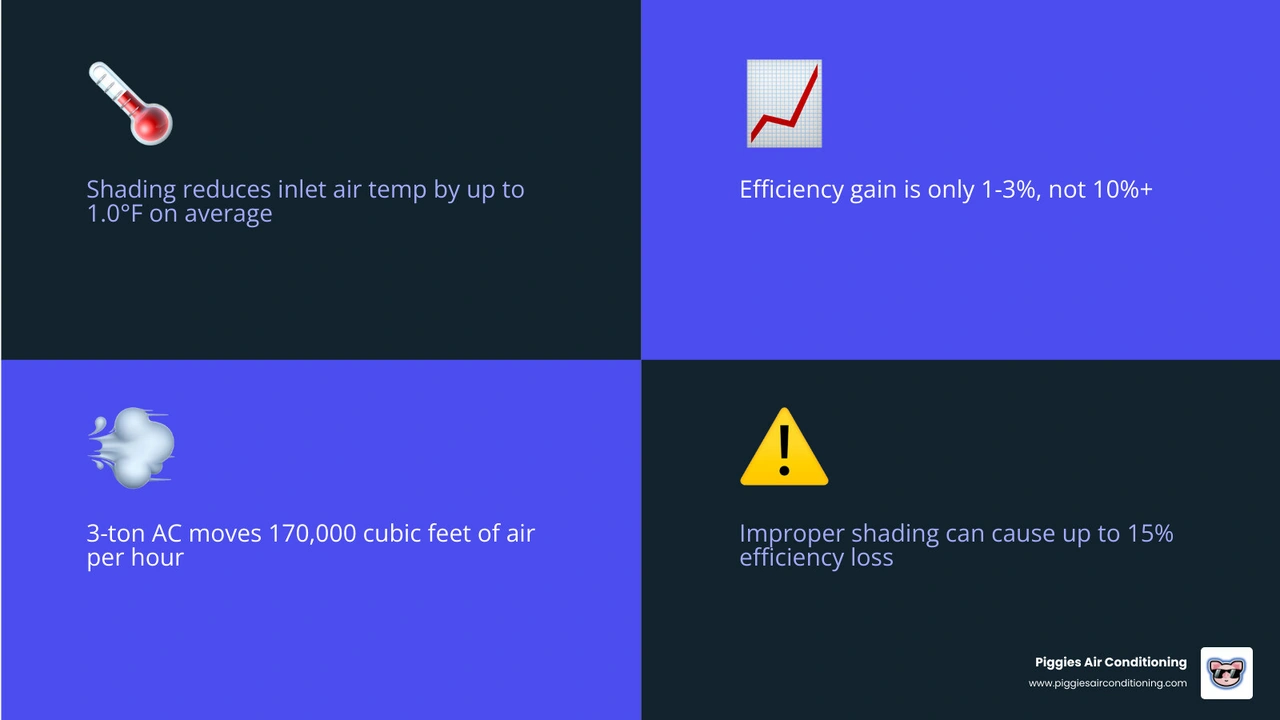

The Florida Solar Energy Center (FSEC) studied this directly and found that shading a central AC condenser unit reduced average peak inlet air temperatures by just 1.0°F. That translates to roughly 1-2% in real-world energy savings — far less than the 10% figure you may have seen floating around online.

The Kuwait Institute for Scientific Research came to a similar conclusion, putting the maximum efficiency gain from shading at around 1%.

Why so little? A standard 3-ton central AC condenser moves approximately 170,000 cubic feet of air every hour. That's a massive volume of air — far more than any small patch of shade can meaningfully cool. The unit quickly draws in air from well beyond the shaded zone, making localized shade far less impactful than it seems.

That said, how you shade the unit matters a lot. Done wrong, shading can actually restrict airflow and make your system work harder — not easier. Done right, it can offer a modest benefit while protecting your compressor from unnecessary heat stress.

This guide walks San Gabriel Valley homeowners through the real science, the real risks, and the strategies that actually move the needle on your cooling bills.

Does Shade on Outdoor Unit Improve Efficiency? The Scientific Reality

In May 2026, as we prepare for another scorching Southern California summer, many of our neighbors in West Covina and Pasadena are looking for any way to trim their utility bills. The idea of shading the AC unit is a classic "common sense" tip that has been passed around for decades. It sounds logical: if the sun is beating down on the metal box, it must be getting hotter, right?

However, scientific studies tell a different story. The Florida Solar Energy Center (FSEC) conducted extensive testing and found that localized shading of the condenser unit resulted in an average daily air inlet temperature reduction of only about 1.0°F (0.6°C). In some instances, the maximum afternoon temperature reduction reached 3.3°F, but the overall impact on energy consumption was negligible, averaging a mere 0.1% to 2.0% savings across multiple test sites.

The reason for this is thermodynamics. Air conditioning efficiency improves by approximately 1.2% for every 1°F reduction in the temperature of the air entering the condenser. Because a central AC unit "breathes" so much air, it effectively "outruns" any small pocket of cool air created by a trellis or a single bush. It pulls in ambient air from the entire backyard, not just the air directly under the shade.

If you find that your system is struggling despite the weather not being at its peak, you might be facing more than just a sunlight issue. It’s worth checking the Top 5 Signs Your AC Needs Repair Before Summer Hits to ensure your system is mechanically sound before you invest in shading structures.

Does shade on outdoor unit improve efficiency for window units?

While central air conditioners see minimal gains, window or room-sized units are a different story. Shading a window unit can actually improve efficiency by up to 10%.

Why the difference? Window units are smaller and don't move the massive volumes of air that a 3-ton central condenser does. They also tend to have more of their casing exposed to direct solar radiation relative to their total cooling capacity. Shading these smaller units can prevent the metal housing from absorbing radiant heat, which helps the smaller compressor inside run more efficiently.

Does shade on outdoor unit improve efficiency more than duct repair?

If you are looking for significant energy savings, shading the condenser is rarely the best place to start. In fact, fixing your ductwork is far more effective. Leaky or uninsulated ducts can waste up to 20-30% of your system's cooling energy.

Compare that to the 1-3% gain from shading, and the winner is clear. Properly sealing ducts and ensuring insulation boots are intact can cut your bills significantly. For those in older homes in Alhambra or San Marino, exploring the Benefits of Modern Ductless AC Systems might also be a better investment, as these systems eliminate the energy loss associated with ductwork entirely.

The Airflow Factor: Why Shading Can Be Risky

The biggest myth we want to bust is that more shade is always better. In reality, the most important factor for your AC unit isn't shade—it's airflow.

A typical 3-ton condenser moves about 170,000 cubic feet of air per hour. To put that in perspective, that is roughly equivalent to a 55-foot cube of air every sixty minutes. Your AC unit needs to "exhale" the heat it collected from inside your home. If you build a solid structure over it or plant dense bushes too close, you create what we call a "recirculation trap."

In a recirculation trap, the hot exhaust air leaving the top of the unit is blocked by the shade structure and pushed back down into the intake. Instead of pulling in 90°F ambient air, the unit starts pulling in its own 120°F exhaust. This can actually decrease efficiency by 15% or more and lead to serious mechanical issues. If you’ve noticed your vents aren't blowing as hard as they used to, you might need to Address Weak Airflow from Your AC Vents before the lack of circulation causes a breakdown.

Poor airflow is also a leading cause of the "refrigerant freeze." When the system can't shed heat properly, the internal pressures go haywire. If you find ice on your lines, check out our guide on What to Do When Your AC Freezes Up and immediately clear any obstructions around the outdoor unit.

Recommended clearance for San Gabriel Valley homes

To keep your system breathing easy in the Southern California heat, we recommend following these clearance standards:

• Sides: Maintain at least 2 to 3 feet of open space on all sides of the unit. This allows the intake panels to draw in plenty of air.
• Vertical: Ensure at least 5 feet of clear vertical space above the unit. Most condensers exhaust air out the top; blocking this path is the fastest way to overheat your compressor.
• Service Access: Never block the side of the unit where the electrical disconnect and refrigerant lines are located.

The danger of "smothering" your condenser

We often see DIY shading projects involving solid plywood covers, tarps, or dense "privacy" fences that wrap tightly around the unit. These are heat traps. Smothering your condenser increases the "head pressure" in the compressor, which is the most expensive component in your system. High head pressure leads to short cycling (the unit turning on and off rapidly) and can cause the compressor to fail years before its time.

Best Practices for Shading Your AC in the San Gabriel Valley

If you still want to provide shade—perhaps to protect the unit's lifespan or for aesthetic reasons—there is a right way to do it.

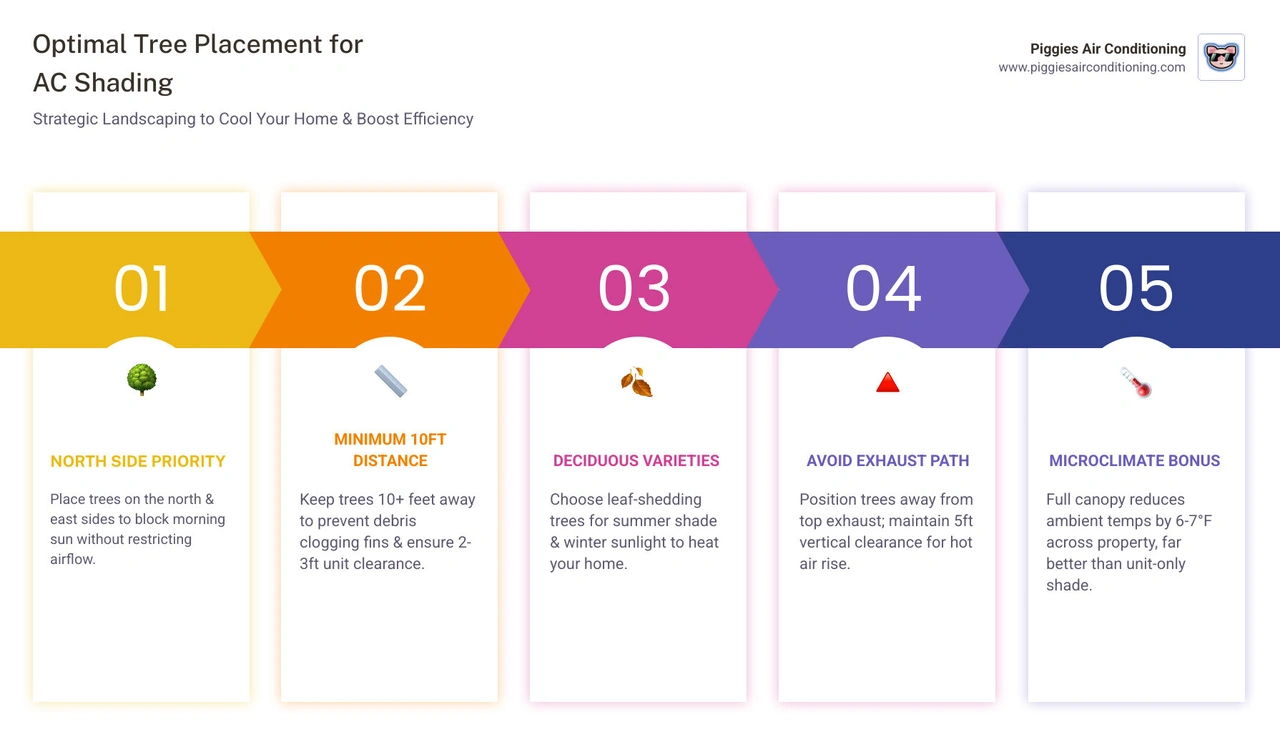

The best approach is to focus on natural shade and breathable structures. Strategic planting of deciduous trees (trees that lose their leaves in winter) is the gold standard. These trees provide a thick canopy of shade during our hot Baldwin Park summers but allow the sun to reach the house in the winter when you might want the extra warmth.

Another great option is using light-colored gravel around the base of the unit. Dark dirt or asphalt absorbs heat and radiates it back up into the AC intake. Light-colored gravel reflects that energy away, helping to keep the immediate microclimate slightly cooler.

Using landscaping to create a microclimate

Instead of focusing only on the AC unit, aim to create a cooler "microclimate" for your entire property. A well-landscaped yard with a healthy tree canopy can reduce local air temperatures by 6 to 7°F. This is much more effective than a single umbrella over the condenser.

When planting, keep trees far enough away that falling leaves and debris won't clog the condenser fins. We often see units in Glendora or Arcadia that are "choked" by pine needles or flower petals, which forces the system to work much harder to move air.

Artificial shading: Pergolas vs. Awnings

If you prefer a built structure, choose a pergola with a lattice roof rather than a solid awning. A lattice allows hot exhaust air to rise freely while still blocking the majority of direct sunlight.

• Reflective Materials: Use materials that reflect heat rather than absorb it.
• Accessibility: Ensure the structure can be easily moved or has enough space for a technician to perform a tune-up.
• North-Side Placement: If you are installing a new system, the north side of the house is naturally the shadiest spot and usually doesn't require any extra structures at all.

Better Alternatives for Lowering Your Summer Cooling Bills

If does shade on outdoor unit improve efficiency only by 1-3%, what actually works? The most effective strategy is to shade the house, not the unit.

Shading your windows and walls can reduce your cooling load by up to 25%. When the sun hits your windows, it creates a greenhouse effect inside. Using reflective window films, solar screens, or exterior awnings prevents that heat from ever entering your home. This means your AC doesn't have to turn on as often in the first place.

Other high-impact alternatives include:

• Attic Insulation: Keeping the heat in your attic from seeping through the ceiling.
• Smart Thermostats: Programming your system to run less when you aren't home.
• Coil Cleaning: A dirty condenser coil can drop efficiency by much more than shade can ever improve it. A professional cleaning ensures maximum heat transfer.
• Regular Maintenance: A well-tuned system is an efficient system. Small adjustments to refrigerant levels and electrical components can save you far more than a trellis ever will.

Frequently Asked Questions

Is it worth building a structure specifically to shade my AC?

Generally, no. The cost of materials and labor for a high-quality, breathable structure usually outweighs the 1-3% energy savings you'll see on your bill. It would take many years to break even. However, if you are building a pergola for aesthetic reasons anyway, placing it over the AC (with proper clearance) is a nice bonus.

Should I mist my AC unit with water to help it cool?

We strongly advise against this. While water evaporation does cool the air, San Gabriel Valley water is often "hard" and full of minerals. Misting your unit can lead to scale buildup on the delicate aluminum fins, which eventually acts as an insulator, reducing efficiency. It can also cause premature corrosion of the metal components.

Does direct sunlight damage the AC unit's metal casing?

Modern AC units are engineered for the outdoors. They are finished with UV-resistant powders and heavy-duty coatings designed to withstand decades of direct sunlight. While the casing gets hot to the touch, it doesn't significantly transfer that heat to the internal cooling process. The temperature of the air being pulled in is what matters, not the temperature of the "box."

Conclusion

At Piggies Air Conditioning, we want our neighbors in Baldwin Park, West Covina, and across the San Gabriel Valley to have the most efficient homes possible. While the idea that "shade equals savings" is a popular one, the science shows that maintaining proper airflow and keeping your system well-maintained are far more important.

As a certified Daikin Comfort Pro dealer, we specialize in high-efficiency installations and offer a 12-year full replacement and labor warranty on Daikin units—giving you peace of mind that a little sunshine won't hurt. Instead of worrying about a shade structure, focus on the things that truly move the needle: clean coils, sealed ducts, and regular professional inspections.

Ready to ensure your system is ready for the heat? Sign up for a maintenance plan to keep your system running at peak efficiency and let our expert technicians handle the heavy lifting. We’re here to keep you cool all summer long!
