Heat Pumps 101: Moving Heat Instead of Making It

How a Heat Pump Works for Heating and Cooling — And Why It Matters for San Gabriel Valley Homeowners

Understanding how does a heat pump work for heating and cooling is simpler than most people think — and knowing the answer could save you real money on your energy bills.

Quick Answer: How a Heat Pump Works

1. Absorbs heat from the air outside (or inside) using a cold liquid refrigerant
2. Compresses that refrigerant to raise its temperature
3. Releases the heat where you need it — inside in winter, outside in summer
4. Expands the refrigerant back to a cool liquid and repeats the cycle

The key idea: a heat pump moves heat rather than creates it. That's why it can deliver up to 300% efficiency — something no gas furnace can match, since even the best furnaces top out around 98% efficiency.

For homeowners in Baldwin Park, West Covina, Pasadena, and across the San Gabriel Valley, this matters. Southern California's mild winters and hot summers make heat pumps one of the most practical, year-round HVAC solutions available. Yet many homeowners are still running older systems that waste energy, struggle with inconsistent temperatures, and drive up monthly bills.

A heat pump solves all three problems with a single, elegant machine.

What is a Heat Pump and How Does It Differ from Traditional Systems?

At its core, a heat pump is a "heat mover." While it might sound like something out of a sci-fi novel, you likely already have a heat pump in your kitchen. Your refrigerator is a one-way heat pump; it takes heat from inside the fridge and dumps it into your kitchen (if you’ve ever felt the warm air blowing from the bottom of your fridge, you’ve seen it in action).

In HVAC, Heat Pumps serve as a comprehensive climate control system. Instead of having a separate air conditioner for the summer and a furnace for the winter, a heat pump handles both. It uses a specialized chemical called refrigerant as a medium to transport thermal energy. Because it relies on electricity to power a compressor rather than burning fuel to generate heat, it is incredibly clean and efficient.

For us here in the San Gabriel Valley, where we rarely see the "bone-chilling" sub-zero temperatures found in the Midwest, heat pumps are ideally suited to our environment. They provide year-round comfort by simply changing the direction of the heat flow.

How does a heat pump work for heating and cooling compared to a furnace?

The biggest difference between a heat pump and a traditional furnace is the "Creation vs. Transportation" factor. A gas furnace creates heat through combustion—burning fossil fuels like natural gas. Even the most advanced furnaces can only reach about 98% efficiency, meaning for every dollar you spend on gas, 2 cents literally go up the chimney.

In contrast, our Heat Pump Services focus on energy amplification. Because a heat pump is moving existing heat that is already present in the outdoor air (yes, even when it feels cold to us!), it can reach efficiencies of 300% to 400%. It isn't "creating" energy; it’s just using a little bit of electricity to move a lot of heat. This makes it a far more sustainable choice for homeowners in cities like West Covina or Pasadena who want to lower their carbon footprint.

Common Applications in Modern Homes and Industry

While we mostly talk about residential HVAC, heat pumps are versatile workhorses. In our local communities, we see them used in several ways:

• Residential Homes: Providing central heating and cooling through existing ductwork.
• Apartments and Studios: Using ductless mini-splits to provide quiet, efficient comfort in tight spaces.
• Commercial Buildings: Managing the climate for offices, hospitals, and retail spaces in Heat Pump Service West Covina CA.
• Hot Water: Heat pump water heaters are becoming the gold standard for sanitary hot water, using the same "heat moving" technology to warm your morning shower.

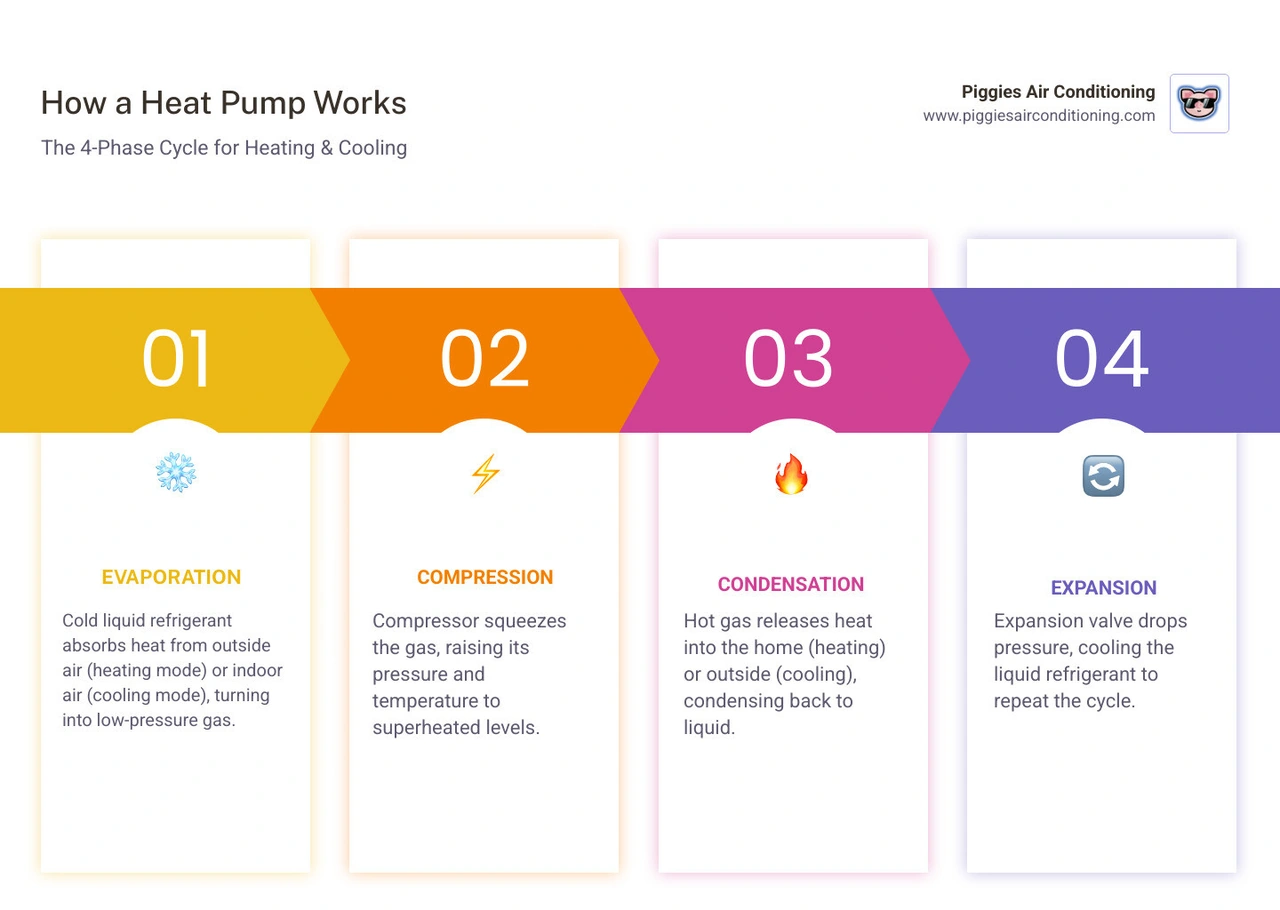

The Science of the Refrigerant Cycle: Four Main Phases

To understand how does a heat pump work for heating and cooling, we have to look at the "magic" of thermodynamics. Heat naturally wants to move from a warm place to a cold place. A heat pump uses mechanical work to force it to do the opposite when necessary.

Everything depends on the "vapor-compression cycle." By manipulating the pressure of the refrigerant, we can control its temperature and whether it is a liquid or a gas.

Evaporation and Compression

The cycle begins at the evaporator coil. Here, the refrigerant is a cold, low-pressure liquid. As outdoor air (in winter) or indoor air (in summer) blows over these coils, the refrigerant absorbs the heat. Because the refrigerant has an incredibly low boiling point, even "cold" air causes it to evaporate into a gas.

Next comes the compressor—the heart of the system. Just like a bicycle pump gets hot when you use it vigorously, compressing a gas raises its temperature significantly. The compressor squeezes that low-pressure gas into a high-pressure, superheated vapor. If your system is making strange clanking noises during this stage, it might be time for Heat Pump Repair San Marino CA.

Condensation and Expansion

The superheated gas then moves to the condenser coil. Since the gas is now much hotter than the surrounding air, the heat naturally "jumps" off the coils and into your home (in winter) or outside (in summer). As the refrigerant loses heat, it condenses back into a high-pressure liquid.

Finally, the liquid passes through the expansion valve. This valve acts like a nozzle, quickly dropping the pressure of the refrigerant. As the pressure drops, so does the temperature, turning the refrigerant back into a cold liquid ready to start the cycle all over again. Keeping these components clean is vital, which is why we recommend a regular Heat Pump Tune Up Covina CA to ensure the expansion valve and coils aren't restricted by dirt or debris.

How Does a Heat Pump Work for Heating and Cooling Year-Round?

The "secret ingredient" that allows a heat pump to do two jobs is the reversing valve. This valve is the brain of the operation. It physically redirects the flow of the refrigerant, effectively swapping the roles of the indoor and outdoor coils.

Cooling Mode: Extracting Indoor Heat

In the summer, a heat pump acts exactly like a traditional air conditioner. The indoor coil acts as the evaporator, soaking up the unwanted heat from your living room. That heat is then carried outside to the condenser coil and released into the San Gabriel Valley air.

An added benefit for our customers in Heat Pump Service South Pasadena CA is dehumidification. As the indoor coil gets cold, moisture from our occasionally humid summer days condenses on the coil and is drained away, leaving your home feeling crisp and comfortable.

Heating Mode: How does a heat pump work for heating and cooling in winter?

When the temperature drops in January, you simply flip the thermostat to "Heat." The reversing valve clicks into place, and the cycle reverses. Now, the outdoor coil acts as the evaporator, "mining" heat from the outside air.

Even when it’s 40°F outside, there is an immense amount of thermal energy in the air. In fact, heat energy exists in anything warmer than "absolute zero" (-459°F). Modern technology allows our systems to find that heat, concentrate it through compression, and bring it inside. For those in Heat Pump Service West Covina CA, this provides a "milder," more consistent warmth than the scorched-air feeling of a gas furnace.

Why Heat Pumps are the Most Energy-Efficient Choice in 2026

As of May 2026, the shift toward electrification is in full swing. Heat pumps are the primary tool for decarbonizing our homes. Because they move 3 to 4 units of heat for every 1 unit of electricity they use, they are far more efficient than any other system on the market.

This efficiency translates directly to your wallet. By switching from electric resistance heating (like baseboard heaters or old wall units) to a heat pump, you can reduce your electricity use for heating by approximately 50%. To keep that efficiency at its peak, regular Heat Pump Maintenance Yorba Linda CA is essential to ensure the refrigerant levels are perfect and the motors are running smoothly.

Understanding COP and SEER2 Ratings

When shopping for a system, you’ll see two main numbers:

1. COP (Coefficient of Performance): This measures real-time efficiency. A COP of 4 means the system provides 4 kilowatts of heat for every 1 kilowatt of electricity used.
2. SEER2 (Seasonal Energy Efficiency Ratio): This measures cooling efficiency over an entire season. In 2026, high-efficiency models can reach up to 23 or 24 SEER2.

For homeowners in Heat Pump Service Monrovia CA, choosing a unit with high ratings ensures that your system isn't working harder than it has to during a heatwave.

Air-Source vs. Ground-Source Systems

While most of our installations are air-source, there are other ways to "find" heat:

If you're looking for a Heat Pump Installation Monrovia CA, we can help you determine which of these sources is right for your specific property layout.

Frequently Asked Questions about Heat Pump Operation

Can heat pumps work effectively in cold climates?

Absolutely. While older models used to struggle when the temperature dipped below 25°F, modern "Cold Climate Heat Pumps" (CCHPs) use inverter technology to operate efficiently down to -13°F or even -22°F. In the San Gabriel Valley, we rarely see those extremes, but it’s nice to know your system has the power to handle anything. If it does get unusually cold, most systems have backup electric heat strips to ensure you stay toasty. If your old system is failing during a cold snap, consider a Heat Pump Replacement Glendora CA.

Do heat pumps bring outside air into the house?

No. This is a common misconception! A heat pump recirculates the air already inside your home. The only thing moving between the indoor and outdoor units is the refrigerant inside copper lines. This is great for indoor air quality, as it means you aren't bringing in outdoor allergens or smog—just the heat from that air. However, if your air feels stuffy, a Heat Pump Repair Brea CA specialist can check your filtration system.

What is the average lifespan of a heat pump system?

A well-maintained heat pump typically lasts about 15 years. Because they work year-round (unlike a furnace that rests all summer or an AC that rests all winter), they do experience more "mileage." However, with the 12-year full replacement and labor warranty we offer on Daikin Comfort Pro units, you can rest easy knowing your investment is protected. If your unit is approaching the 20-year mark and leaving you with high bills, it might be time for a Heat Pump Replacement West Covina CA.

Conclusion

At Piggies Air Conditioning, we’ve seen how a modern heat pump can transform a home's comfort. Whether you’re in Baldwin Park, Alhambra, or San Dimas, moving heat is simply smarter than making it. As a certified Daikin Comfort Pro dealer, we take pride in our owner-operated service and our commitment to the San Gabriel Valley community.

From same-day availability to our industry-leading 12-year warranties, we are here to make sure your transition to a heat pump is seamless. Don't let another season of high energy bills pass you by.

Ready to upgrade? Explore our high-efficiency Heat Pumps today!

If you're ready to see the difference for yourself, contact us for a professional Heat Pump Installation Covina CA. We'll help you pick the perfect system to keep your family comfortable for the next 15 years and beyond.
